The maximum frequency of the signal lines used for VGA port is 25MHz, and the video signals of its R, G, and B lines are 0.7Vp-p, and the video signals of ID01, ID02, ID03, H-sync, and V-sync are in the range of 0.3 to 5.0 Vp-p. The suppression capacitance of these lines should be taken into consideration.

Test standard:IEC 61000-4-2：±8KV（contact）±15KV（air）

Solutions：

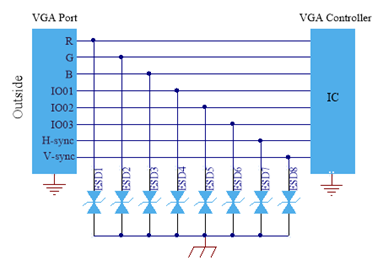

Solution 1：ESD1～ESD8：UP1P882C05P01

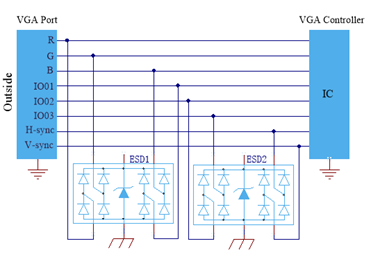

Solution 2：ESD1～ESD2：UP1.5P236A05P04
