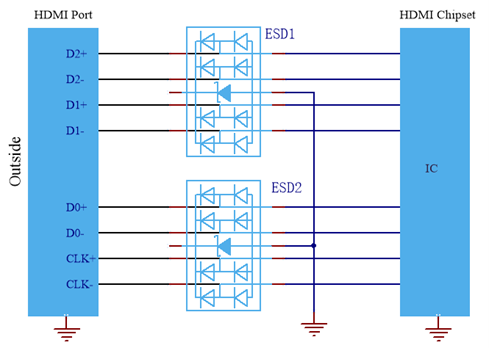

The Protecion Circuit of HDMI


Test standard:IEC 61000-4-2：±30KV（contact）±30KV（air）

Solution: ESD：UP1.5P0524A05P04

Part Number	V_RWM	I_PP	V_C	C	ESD Capacity	Package
UP1.5P0524A05P04	5V	5A	34V@5A	0.8pF	±8KV ±15KV	DFN2510-10

UP1.5P0524A05P04
Power:150W; Package: DFN-2510; Breakdown voltage: 5V; ns-level response speed; Lower clamping voltage;
