Application

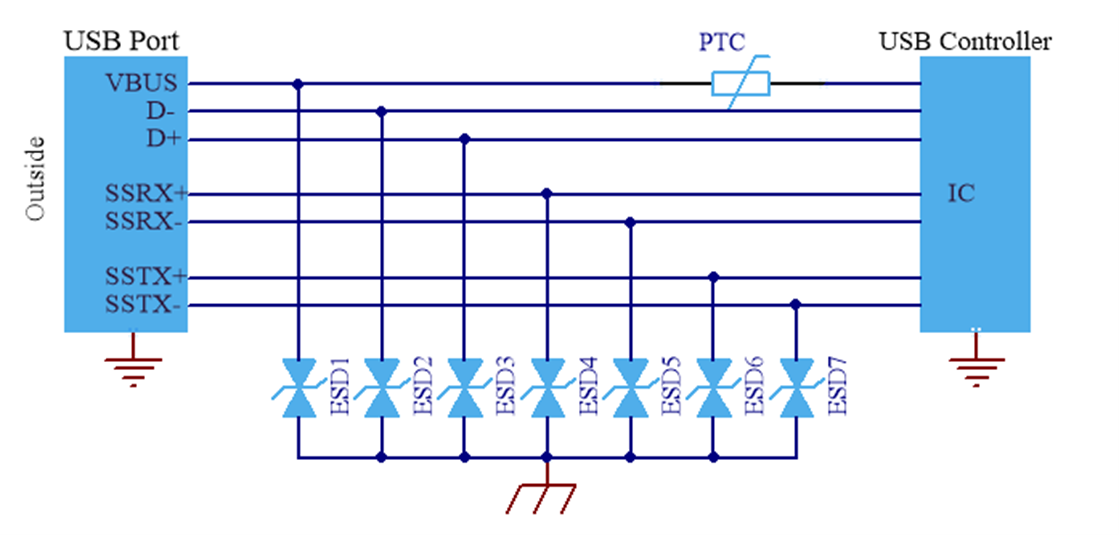

The Protecion Circuit of USB3.0


Test standard:IEC 61000-4-2：±30KV（contact）±30KV（air）

Solution: ESD：UP3.5P323C05P01

Part Number	V_RWM	I_PP	V_C	C	ESD Capacity	Package
UP3.5P323C05P01	5V	17A	18.3V@17A	1pF	±30KV	SOD-323

UP3.5P323CXXP01 Series
Power:350W; Package: SOD-323; Breakdown voltage: 3.3V to 24V; ns-level response speed; Lower clamping voltage;
