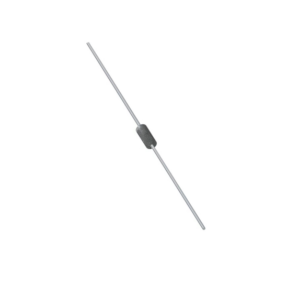

Package: DO-41;
Peak Repetitive Reverse Voltage:50V to 1000V;
Maximum Average Rectified Currentt:1A;
Lower leakage current;
| NO. | Part Number | Package | PD_Max(W) | IO_Max(A) | VRRM(V) | VF_Max(V) | @IF(A) | IR_Max(μA) | @VR(V) |
| 1 | 1N4001G | DO-41 | / | 1 | 50 | 1.1 | 1 | 2.5 | 50 |
| 2 | 1N4002G | DO-41 | / | 1 | 100 | 1.1 | 1 | 2.5 | 100 |
| 3 | 1N4003G | DO-41 | / | 1 | 200 | 1.1 | 1 | 2.5 | 200 |
| 4 | 1N4004G | DO-41 | / | 1 | 400 | 1.1 | 1 | 2.5 | 400 |
| 5 | 1N4005G | DO-41 | / | 1 | 600 | 1.1 | 1 | 2.5 | 600 |
| 6 | 1N4006G | DO-41 | / | 1 | 800 | 1.1 | 1 | 2.5 | 800 |
| 7 | 1N4007G | DO-41 | / | 1 | 1000 | 1.1 | 1 | 2.5 | 1000 |
